Eco-Friendly Steel Ball Flashing Machine with 45KW Power and 5500kg Weight for Energy & Mining

Name: EcoFriendly Steel Ball Flashing Machine with 45KW Power and 5500kg Weight for Energy amp Mining
Brand: DURA
Price: 23 USD

Eco-Friendly Steel Ball Flashing Machine with 45KW Power and 5500kg Weight for Energy & Mining Manufactures

Place of Origin : Jiangsu, China

Brand Name : DURA

MOQ : 1

Price : US$23,130

Power : 45 kW

Weight : 5500 kg

Model : SBFM-400

Ball processing range : φ2~25.4mm

Max force : 300KN

Loading capacity : 400kgs/load

Inverter brand : Nidec

Main motor : 45KW

PLC brand : Delta

Guide transmission motor : 0.55KW

Guide lift motor : 0.25KW

Oil pump motor : 2.2KW

Water pump motor : 0.25KW

Core components : Bearing

Packaging material : Steel frame + plywood plates

Contact Now

Product Overview

Steel Ball Flashing Machine

Steel ball flashing machine is used in the second process of steel ball production. Right after the ball blanks are formed from the cold heading process to maximum remove the stock from ball blanks. This ball flashing macine is widely used in bearing manufacturing or other industries where steel balls are produced.

PRODUCT SPECIFICATIONS

Model: SBFM-400

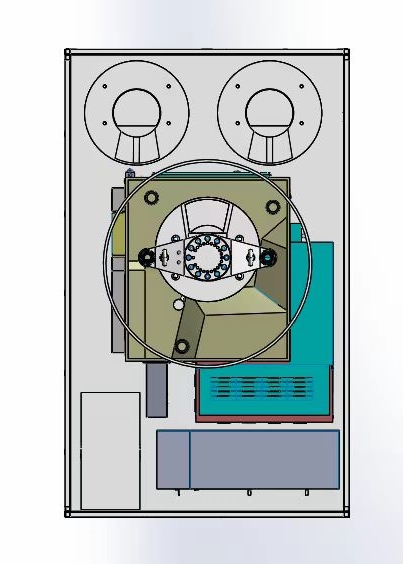

- steel ball processing range: φ2~25.4mm - Max. force: 300KN - loading capacity: 400kgs/load - inverter: Nidec brand - main motor: 45KW - PLC: Delta brand - ball guide transmission motor: 0.55KW - ball guide lift motor: 0.25KW - oil pump motor: 2.2KW - water pump motor: 0.25KW - overall dimensions: please refer to drawing attached below - weight: 5500kgs

Eco-Friendly Steel Ball Flashing Machine with 45KW Power and 5500kg Weight for Energy & Mining

Product packaging

Steel frame + plywood plates

Packing
